The Fluke FEV100/TY1 KIT2 EVSE Test Kit with 125B ScopeMeter and 87V Multimeter (FLK-FEV100/TY1 KIT2 / 5348161 / 39749-72) provides a comprehensive solution for installation checks, periodic maintenance and troubleshooting of Type 1 AC electric vehicle charging stations. The FEV100 adapter simulates the presence of an electric vehicle, allowing technicians to evaluate EVSE safety, charging states, output voltage and control-pilot behaviour without bringing an EV onsite.
Key Features
- Simulates an electric vehicle at the EVSE, allowing functional and safety checks without having a vehicle onsite
- Supports Type 1 SAE J1772 charging stations, including Level 1 and Level 2 AC EVSE applications
- Control-pilot state simulation, covering CP states A, B, C and D for charging-state verification
- CP Error E simulation, allowing technicians to check EVSE response to a control-pilot fault condition
- Protective-earth error simulation, supporting evaluation of EVSE response to an interrupted PE conductor
- PE pre-test function, providing visible indication when potentially dangerous voltage above approximately 30 V is present on the protective-earth conductor
- GFCI test function, creating a controlled ground-fault condition to verify EVSE protective-device operation
- Fluke 125B ScopeMeter included, enabling waveform analysis of the control-pilot signal and verification of EVSE charging-state behaviour
- Fluke 87V Industrial Multimeter included, supporting charging-voltage and electrical measurements during EVSE testing
- TL224 insulated test leads included, providing flexible connections between the adapter and test instruments
- IP54 FEV100 enclosure, supporting field testing in dusty or damp service environments
- CAT II 250 V FEV100 measurement category, with IEC 61010-1 and IEC 61010-2-030 safety compliance
Benefits
- Verify EV charging-station operation without scheduling or transporting an electric vehicle to the site.
- Combine EV simulation, waveform analysis and industrial multimeter measurements in one professional service kit.
- Check charging states, protective earth, GFCI response and control-pilot behaviour during commissioning or troubleshooting.
- Use the 125B ScopeMeter to inspect control-pilot waveforms and duty cycle when diagnosing charging-current or communication issues.
- Perform routine maintenance and post-installation checks on SAE J1772 Type 1 AC EVSE systems with a coordinated Fluke tool set.
Why Choose the Fluke FEV100/TY1 KIT2 (5348161 / 39749-72)?
The FLK-FEV100/TY1 KIT2 combines Fluke's FEV100 EVSE simulator with a 125B ScopeMeter, 87V Industrial Multimeter and dedicated test leads for comprehensive Type 1 charging-station diagnostics. John Morris Group supplies the verified 39749-72 configuration for electricians, EVSE installers and service technicians performing installation verification, scheduled maintenance and fault finding.
Included Accessories

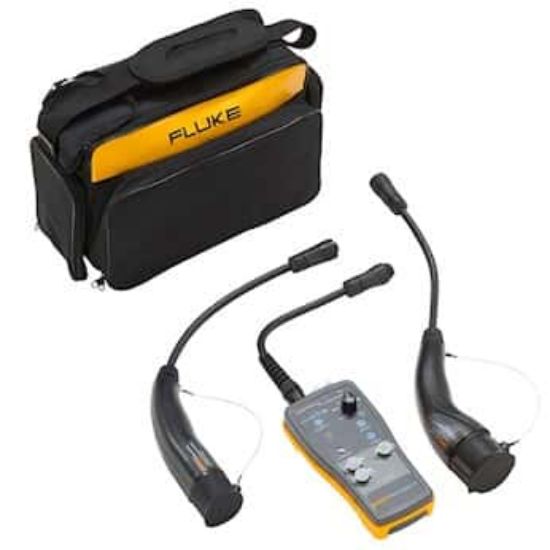

- FEV100/BASIC EVSE Test Adapter
- FEV-CON/TY1 Type 1 Connector and Cable
- Soft carrying case and FEV100 user manual
- Fluke 125B Hand-Held ScopeMeter
- Shielded 125B test leads with black ground leads
- Grounding test lead
- Red and blue hook clips
- Banana-to-BNC adapter
- 10:1 voltage probe
- i400s AC current clamp
- USB angled adapter and Wi-Fi USB adapter
- 125B power adapter/battery charger and rechargeable Li-ion battery
- Fluke 87V Industrial Multimeter
- TL75 test leads
- AC175 alligator clips
- 87V holster with tilt stand and lead storage
- 80BK temperature probe
- 9 V battery installed in the 87V
- TL224 silicone-insulated test lead pair
- Quick reference guide
