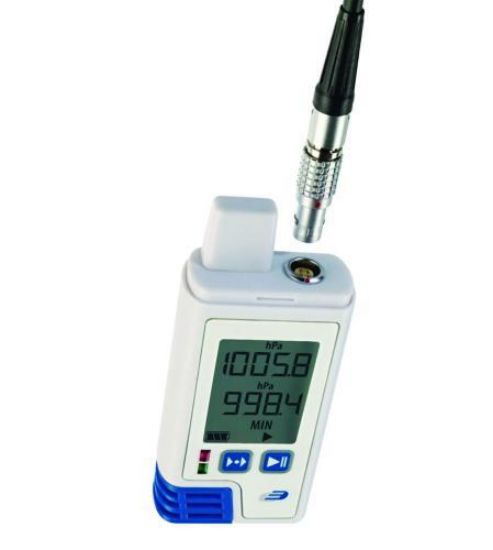

The Dostmann PDF Data Logger LOG220 E is a versatile device for recording temperature, humidity, and pressure, with an additional input for external sensors such as CO2 or temperature/humidity/pressure sensors. Featuring a clear display and wall-mount capability, this data logger is ideal for monitoring environmental conditions with high accuracy and convenience.
Product Features
- Freely adjustable recording interval from 10 seconds to 24 hours
- Min- and Max-values can be reset on the display
- Time marking function ("Time Marker") during data recording
- Movement sensor for shock recording
- Memory for approximately 60,000 measurements
- Automatic PDF output; device can also be used without software
- No driver installation required
- Status and alarm LEDs with buzzer
- Display can be switched off to save battery
- Battery life over 4 years at > 15 min measuring interval
- USB interface for easy data transfer
- Software available for free download from the manufacturer
- Supports additional temperature, humidity, pressure, and CO2 sensors (sold separately)
Scope of Supply
- Data logger LOG220 E
- Wall mount
- Battery
- USB cover
- Screws and dowels
Specifications
- Internal temperature range: -40 ... 70 °C
- Internal temperature accuracy: ±0.5 °C (0 ... 60 °C), otherwise ±1 °C
- External temperature range: -200 ... 850 °C
- External temperature accuracy: ±0.2 °C or 0.3 % (greater value applies)
- Temperature resolution: 0.1 °C
- Humidity range: 0 ... 100 % r.H.
- Humidity accuracy: ±3% r.H. (40 ... 60 % r.H.), ±3.5 % r.H. (20 ... 40 % and 60 ... 80 % r.H.), otherwise ±5 % r.H.
- Humidity resolution: 0.1 %
- Pressure range: 300 ... 1100 hPa
- Pressure accuracy: ±1 hPa (900 ... 1100 hPa), otherwise 0.5 % of end value
- Pressure resolution: 0.1 hPa
- Housing: ABS
- Dimensions (W x D x H): 42 x 20 x 91.5 mm
- Weight: 70 g
- Power supply: 1/2 AA 3.6 V
Benefits
- Accurate, real-time monitoring of environmental conditions
- Large memory capacity for extended data logging
- Portable and easy to install with wall mount
- Automatic PDF generation simplifies reporting and analysis
- Supports additional external sensors for versatile applications
Why Choose Dostmann PDF Data Logger LOG220 E?
This data logger offers precise, reliable, and easy-to-use monitoring of temperature, humidity, and pressure, making it ideal for laboratories, storage facilities, and industrial environments.
