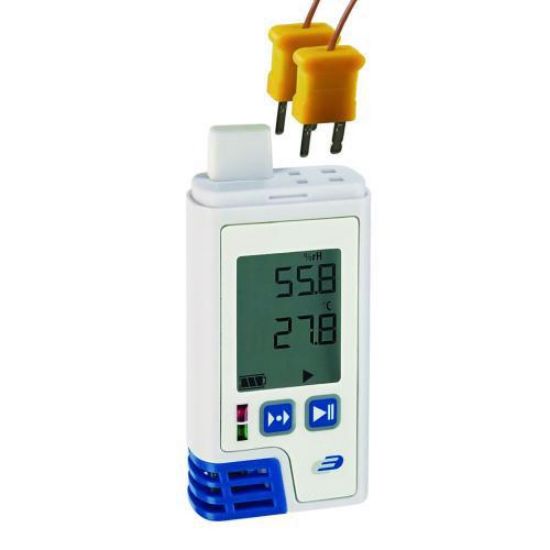

The DOSTMANN PDF Data Logger LOG210 TC is a versatile data logger for monitoring and recording temperature and humidity. Equipped with a display, integrated USB interface for automatic PDF output, and wall mount, it also includes 2 connections for external type K thermocouples, making it ideal for laboratory, industrial, and storage applications.
Product Features
- Freely adjustable recording interval from 10 seconds to 24 hours
- Display of Min- and Max-values with reset function
- Time marking function ("Time Marker") during data recording
- Integrated motion sensor for shock recording
- Memory for approx. 60,000 measurements
- Automatic PDF output, usable without software
- No driver installation needed
- Status and alarm LEDs with buzzer
- Display can be switched off
- Battery life >4 years at >15 min measuring interval
- USB interface for data transfer
- Software available for download on manufacturer’s website
Scope of Supply
- Data logger LOG210 TC
- 2x thermocouples type K (1 m length)
- Wall mount
- Battery
- USB cover
- Screws and dowels
Specifications
- Temperature range internal: -40 ... 70 °C
- Temperature accuracy internal: ±0.5 °C (0 ... 60 °C), otherwise ±1 °C
- Temperature range external: -150 ... 1370 °C
- Temperature accuracy external: ±0.5 °C or 0.5 % (greater value applies)
- Temperature resolution: 0.1 °C
- Humidity range: 0 ... 100 % r.H.
- Humidity accuracy: ±3 % r.H. (40 ... 60 %), ±3.5 % r.H. (20 ... 40 and 60 ... 80 %), otherwise ±5 % r.H.
- Humidity resolution: 0.1 % r.H.
- Housing: ABS
- Dimensions (W x D x H): 42 x 20 x 91.5 mm
- Weight: 70 g
- Power supply: 1/2 AA 3.6 V battery
Benefits
- Reliable monitoring and logging of temperature and humidity
- Automatic PDF output simplifies data documentation
- Supports external type K thermocouples for high-temperature measurements
- Long battery life with easy installation and USB data transfer
Why Choose DOSTMANN PDF Data Logger LOG210 TC with Display for Temperature and Humidity + 2x External Type K Thermocouples?
This data logger provides accurate and versatile temperature and humidity monitoring with automatic PDF generation, easy setup, and reliable long-term operation.
