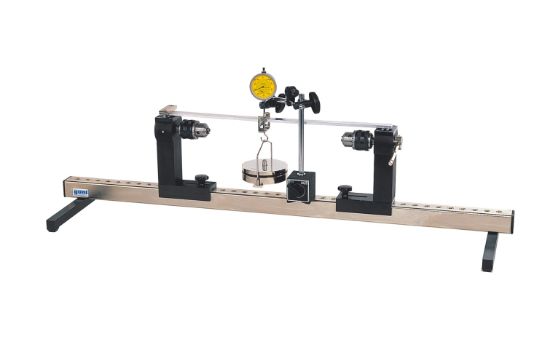

GUNT Bar deformation under bending or torsion is a fundamental topic in materials mechanics, critical for evaluating structural stability and failure risks. This GUNT setup allows for hands-on experimentation with the impact of material type, cross-section, support conditions, and load application on bar deformation. It enables comparison between different bar configurations and loading conditions using precise measurements and adjustable components.
Product Features
- Enables investigation of bar deformation under bending and torsional loads
- Includes a variety of test bars for comparative analysis of material behavior
- Adjustable support blocks with clamping chucks for multiple configurations
- Supports both statically determinate and indeterminate bearing conditions
- Dial gauge for accurate measurement of bar deformation
- Device for applying torsional moment via mounted twist mechanism
- Adjustable load application point for flexible bending tests
- Clearly laid-out components housed in an organized storage system
- Experimental frame included for secure and repeatable test setups
Benefits
- Enhances understanding of mechanical behavior under real-world load conditions
- Ideal for comparing how material and geometry affect structural deformation
- Customizable configurations allow broad experimentation and data collection
- Precision measuring ensures reliable and consistent educational results
- Compact, well-organized system streamlines laboratory workflow
Why Choose the GUNT Bar Deformation Setup?
This GUNT experiment unit is an excellent teaching tool for structural mechanics, enabling clear demonstration and analysis of how materials respond to bending and torsion. It is ideal for engineering courses focusing on stress-strain relationships and failure mechanics, offering detailed insights into real-time deformation effects under controlled conditions.
