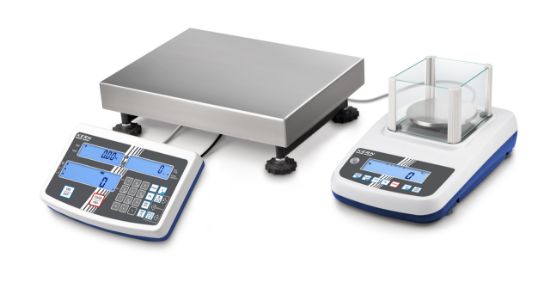

The Kern Counting System 150 kg with 0.01 g readability is a high-precision, EC type-approved [M] system designed for demanding industrial and commercial environments. It integrates a professional precision scale (reference scale) and a high-capacity weighing bridge (quantity scale) to enable exact counting of even the smallest parts in large volumes. Ideal for order picking, inventory control, packaging, and quality assurance tasks, this system ensures accuracy, efficiency, and data connectivity at every step.
Product Features
- Highly accurate counting system that replaces multiple individual balances
- EC type approval [M] for use in verified applications (e.g., order picking packaged items)
- Balances interconnected via RS 232 Y-cable (included), enabling connection of peripheral devices like signal lamps, barcode scanners, or printers (e.g., KERN TCCA-A01-A)
- Three LCD displays: total weight (verifiable), piece weight, and total quantity
- 100 item memories for master data including item number, PRE-TARE (container weight), reference quantity, and reference weight
- Manual optimisation of reference weight to improve average piece weight precision
- Totalising function for running counts of items
- Printout feature with date and time stamp
- Protective working covers included for both scales
What's Included
- Reference Scale: KERN EWJ 600-2M
- Quantity Scale: KERN IFS 100K-2M
- RS 232 Y-cable for interconnection
- KERN TCCA-A01-A communication unit
- Protective working covers (for both scales)
- Draft shield (on precision scale)
Reference Scale: KERN EWJ 600-2M
- Weighing range: 0.6 kg [Max.]
- Readability: 0.01 g [d]
- Minimum piece weight: 0.2 g/piece
- Automatic internal adjustment every 2 hours for consistent accuracy and independence from location of use
- Can be used independently as a professional precision scale
- Concept of easy use: All primary functions have dedicated keys on the keypad
- Draft shield included: weighing space dimensions W×D×H = 134 × 128 × 80 mm
- Protective working cover included with delivery
Quantity Scale: KERN IFS 100K-2M
- Weighing capacity: 60 | 150 kg [Max.]
- Platform dimensions: 500 × 400 × 140 mm
- Industrial-grade weighing bridge for high-volume part counting
- High-accuracy aluminium single-point load cell (1x3000e)
- Protection class: IP65 (resistant to dust and water splashes)
- Ergonomic display unit with large keypad and high-contrast LCD screen
- Supports easy data entry and viewing of values like tare, limits, reference weights
- Optimised for fast, precise part counting in rugged environments
- Protective working cover included with delivery
Benefits
- Combines two scales for enhanced accuracy and capacity
- Ideal for verified applications due to EC type approval [M]
- Accurate counting of even lightweight parts down to 0.2 g
- Minimises errors with automatic internal calibration and display functions
- Connects to external devices for streamlined workflows
- Rugged design suited for tough industrial environments
- Convenient operation with intuitive controls and built-in memory
Why Choose the Kern Counting System 150 kg?
Designed to meet high-volume counting demands with minimal error, the Kern Counting System 150 kg offers professional precision and industrial resilience. With EC type approval [M], automatic adjustment, robust load cell design, and extensive memory capabilities, it is the ideal choice for logistics, inventory management, and quality control environments. Whether you're handling small components or bulk batches, this system ensures optimal performance with flexible connectivity and lasting durability.
