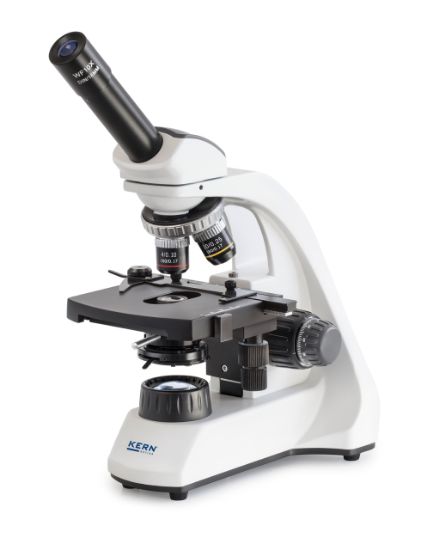

The Kern OBT-1 series is a high-quality school microscope with intuitive controls, robust construction, and modern design. Designed for reliability and ease of use, it features a continuously dimmable 1W LED for optimal sample illumination and supports mobile operation through optional battery use.
Product Features
- Objectives: 4x / 10x / 40x / 100x
- Illumination: 1W LED (transmitted), continuously dimmable
- Condenser: 0.65 condenser lens with rotating aperture diaphragm (OBT 101); 1.25 Abbe condenser, height-adjustable with aperture diaphragm (OBT 102–106)
- Focusing: Coarse and fine focusing knobs on both sides
- Eyepiece: WF10x18
- Revolving Unit: 4-fold lens turret
- Tube: 45° tilt, 360° rotatable
- Dioptre compensation one-sided (for binocular models)
- Overall Dimensions (W×D×H): 195×147×325 mm
- Net Weight: approx. 2.755 kg
What's Included
- Dust cover
- User instructions
Applications / Samples
- Translucent
- Thin
- High-contrast
- Less complex samples (e.g., plant tissue, coloured cells, parasites)
Benefits
- Ideal for educational environments with simple, durable controls
- Powerful LED lighting ensures bright, clear sample visibility
- Portable operation with optional battery support
- Precision focusing suitable for students and instructors alike
Scope of Application
Primary school, secondary school, training, hobby use.
Why Choose The Kern Compound Microscope (School) Monocular Achromat 4/10/40/100 | WF10x18 | 1W LED?
This model offers high performance, ease of use, and rugged build quality—an excellent fit for school labs and individual learners.
