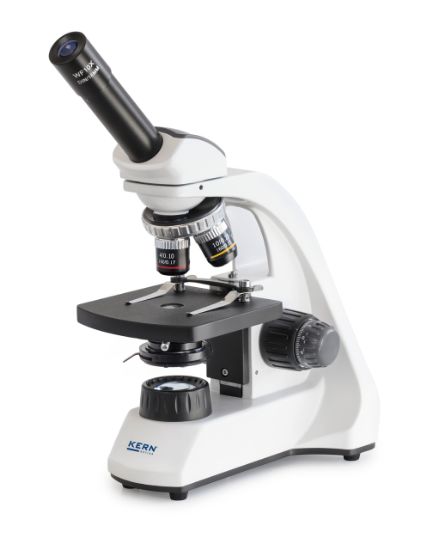

The Kern OBT-1 range is a high-quality school microscope designed with intuitive controls, sturdy construction, and modern design. The continuously dimmable 1W LED provides optimal illumination and long service life. Mobile use is supported via optional battery operation.
Product Features
- Objectives: 4x, 10x, 40x
- Illumination: Continuously dimmable 1W LED (transmitted)
- Condenser: 0.65 condenser lens with rotating aperture diaphragm (OBT 101); 1.25 Abbe height-adjustable condenser with aperture diaphragm (OBT 102–106)
- Focusing: Coarse and fine focusing knobs on both sides
- 4-fold lens revolving unit
- Lens barrel: 45° tilt, 360° rotatable
- Dioptre compensation one-sided (for binocular models)
- Includes dust cover and user instructions
- Overall dimensions (W×D×H): 195×147×325 mm
- Net weight approx. 2.755 kg
Applications / Samples
- Translucent
- Thin
- High-contrast
- Less complex samples (e.g., plant tissue, coloured cells, parasites)
Benefits
- High-quality optics for clear and sharp sample observation
- Long-lasting LED illumination with adjustable brightness
- Robust and durable construction for everyday school use
- Battery option for flexible, mobile use
- Easy to operate with intuitive controls
Scope Of Application
Primary school, secondary school, training, hobby use.
Why Choose The Kern Compound Microscope (School) Monocular Achromat 4/10/40 | WF10x18 | 1W LED?
This microscope offers robust construction with advanced illumination and versatile optics, ideal for educational and hobbyist microscopy.
