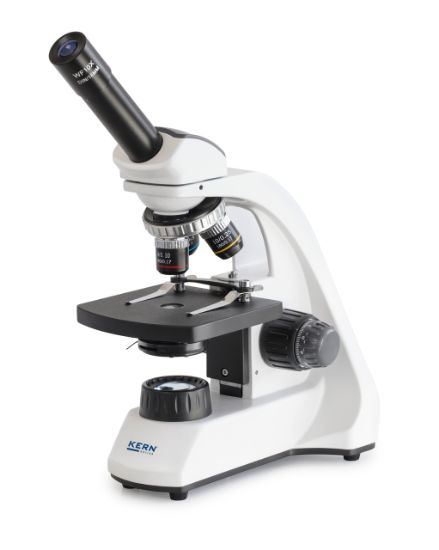

The Kern Compound Microscope OBT-1 range is a high-quality school microscope designed for intuitive use, sturdy construction, and modern design. It features a continuously dimmable 1W LED for optimal sample illumination and long service life. Mobile use is supported via optional battery operation.
Product Features
- Objectives: 4x, 10x, 40x
- Illumination: Continuously dimmable 1W LED (transmitted)
- Condenser: 0.65 condenser lens with rotating aperture diaphragm (OBT 101); 1.25 Abbe height-adjustable condenser with aperture diaphragm (OBT 102–106)
- Focusing: Coarse and fine focusing knobs on both sides
- 3-fold revolving nosepiece (OBT 101)
- Lens barrel: 45° tilt, 360° rotatable
- Dioptre compensation one-sided (binocular models)
- Includes dust cover and user instructions
- Overall dimensions (W×D×H): 195×147×325 mm
- Net weight approx. 2.755 kg
Applications / Samples
- Translucent
- Thin
- High-contrast
- Less complex samples (e.g., plant tissue, coloured cells, parasites)
Benefits
- High-quality optics for clear, bright sample viewing
- LED illumination with adjustable brightness for versatile lighting
- Robust design suitable for educational and hobby use
- Optional battery operation allows mobile use
Scope Of Application
Primary school, secondary school, training, hobby use.
Why Choose The Kern Compound Microscope (School) Monocular Achromat 4/10/40 | WF10x18 | 1W LED?
This microscope combines modern illumination technology and durable construction for an excellent educational and hobbyist tool with mobile flexibility.
