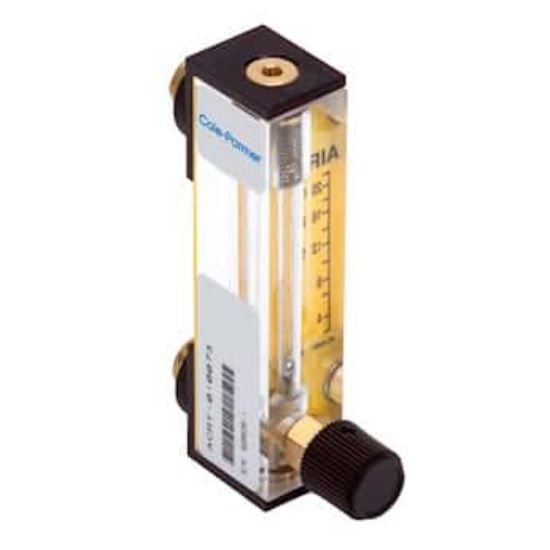

The Cole-Parmer Variable Area Flowmeter, Acrylic, Air, 1.4 LPM, 1/8 Inch Brass, With Valve (15308-30) is a direct-read acrylic flowmeter for air flow measurement. It combines a crystal-clear acrylic housing, glass float, brass fittings and an integrated valve for applications where flow rate adjustment is required.
Key Features:
- Brand: Cole-Parmer
- Product Type: Variable area flowmeter
- Manufacturer Part Number: 15308-30
- Cole-Parmer Item Number: EW-15308-30
- Media Type: Air
- Maximum Flow Rate: 1.4 LPM / 2.8 SCFH
- Accuracy: ±5% of full scale reading
- Maximum Pressure: 100 PSI
- Maximum Operating Temperature: 65 °C / 150 °F
- Process Connection: 1/8 inch NPT(F)
- Fitting Material: Brass
- Valve: Yes, brass valve
- Float Material: Glass
- Housing Material: Acrylic
Note: This product is not approved or intended for medical, clinical, surgical or other patient-oriented applications.
Benefits:
- Supports clear visual flow reading through the crystal-clear acrylic body and stable float.
- Allows flow rate adjustment or fine-tuning using the integrated valve.
- Provides robust connection performance with corrosion-resistant brass fittings.
- Can be configured for panel, partial in-line or full in-line mounting to suit different installations.
- Supports routine cleaning and maintenance through easy disassembly and reassembly.
Why Choose The Cole-Parmer Variable Area Flowmeter, Acrylic, Air, 1.4 LPM, 1/8 Inch Brass, With Valve (15308-30)?
The Cole-Parmer Variable Area Flowmeter, Acrylic, Air, 1.4 LPM, 1/8 Inch Brass, With Valve (15308-30) is a verified air flowmeter option for laboratory, industrial and process applications that require adjustable air flow measurement. John Morris Group supplies Cole-Parmer flow measurement products for customers needing reliable laboratory and technical equipment support.
