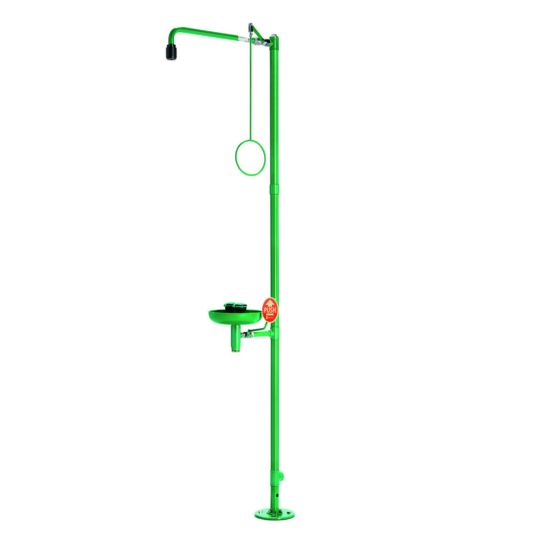

The B-Safety GmbH ClassicLine Safety Shower Combination is a premium free-standing safety solution designed for laboratories and industrial environments. Combining body and eye protection, this shower combination meets EN ISO 7010, ASR A1.3, ANSI Z358.1-2014, and relevant EN standards for reliable workplace safety.
Product Features
- Free-standing ClassicLine safety shower combination with optional safety eye shower, bowl, lid, and face wash unit
- Top and bottom water inlet 1 ¼” female for easy installation in circulation lines; stainless steel plug included
- Base plate: 200 mm diameter, chemical resistant green powder coated, with 4 mounting holes
- Stand pipe: 1 ¼” stainless steel, three-part, chemical resistant green powder coated
- Connection piece of stainless steel for easy shower alignment and installation
- Ball valve ¾” brass with quick connect system and pull rod actuation, DIN-DVGW certified
- Pull rod with ring handle, stainless steel, 700 mm, chemical resistant green powder coated
- Wall shower arm ¾” stainless steel, chemical resistant green powder coated
- Integrated automatic flow regulation and high-performance shower head of chemical-resistant plastics, black, corrosion-resistant, largely scale-free, self-draining
- Self-adhesive PVC signs for body (150 x 150 mm) and eye shower (100 x 100 mm) according to EN ISO 7010 and ASR A1.3
- Integrated ClassicLine safety eye shower with two spray heads at 45°; stainless steel connection pipe, ball valve ½” with PUSH-lever actuation, DIN-DVGW certified
- Big push plate: steel, chemical resistant green powder coated, 130 mm, luminescent according to DIN 67510
- Certified according to BGI/GUV-I 850-0, DIN 1988, EN 1717, ANSI Z358.1-2014, EN 15154-1:2006, EN 15154-2:2006, EN 15154-5:2019
- Total height: 2330 mm; Projection: 630 mm; Eye shower height: 900 mm; Operating pressure: 1.5–3 bar
- Flow rate: Body shower 50 l/min, Eye shower 14 l/min; Water inlet: 1 ¼” female
Benefits
- Ensures compliance with international safety standards
- Durable, chemical-resistant construction for long-term use
- Integrated body and eye protection in one robust unit
- Easy installation and alignment with stainless steel fittings
Why Choose B-Safety GmbH ClassicLine Safety Shower Combination, Free-Standing, Floor-Mounted, With Eye Shower, 2330 mm, 1.5–3 bar?
This safety shower combination delivers certified emergency protection with durable, corrosion-resistant construction, ensuring fast and effective response in workplace incidents.
