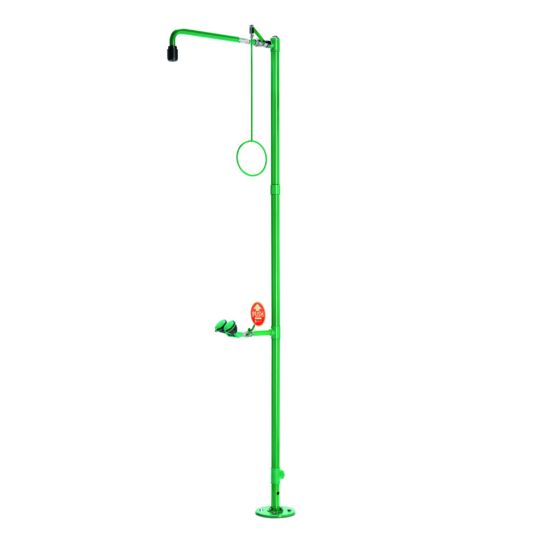

The B-Safety GmbH ClassicLine Safety Shower Combination is a high-performance, free-standing safety solution for laboratory and industrial environments. Designed for body and eye protection, this shower combination meets EN ISO 7010, ASR A1.3, ANSI Z358.1-2014, and relevant EN standards, ensuring compliance and safety in all workplace settings.
Product Features
- Free-standing ClassicLine safety shower combination with optional safety eye shower, bowl, lid, and face wash unit
- Top and bottom water inlet 1 ¼” female for easy installation in circulation lines; stainless steel plug included
- Base plate: 200 mm diameter, chemical resistant green powder coated, with 4 mounting holes
- Stand pipe: 1 ¼” stainless steel, three-part, chemical resistant green powder coated
- Connection piece of stainless steel for easy shower alignment and installation
- Ball valve ¾” brass with quick connect system and pull rod actuation, DIN-DVGW certified
- Pull rod with ring handle, stainless steel, 700 mm, chemical resistant green powder coated
- Wall shower arm ¾” stainless steel, chemical resistant green powder coated
- Integrated automatic flow regulation and high-performance shower head, corrosion-resistant and largely scale-free
- Self-adhesive PVC signs for body (150 x 150 mm) and eye shower (100 x 100 mm) according to EN ISO 7010 and ASR A1.3
- Integrated ClassicLine safety eye shower with two spray heads at 45°; stainless steel connection pipe, ball valve ½” with PUSH-lever actuation, DIN-DVGW certified
- Big push plate: steel, chemical resistant green powder coated, 130 mm, luminescent according to DIN 67510
- Certified according to BGI/GUV-I 850-0, DIN 1988, EN 1717, ANSI Z358.1-2014, EN 15154-1:2006, EN 15154-2:2006, EN 15154-5:2019
- Total height: 2330 mm; Projection: 630 mm; Eye shower height: 900 mm; Operating pressure: 1.5–3 bar
- Flow rate: Body shower 50 l/min, Eye shower 14 l/min; Water inlet: 1 ¼” female
Benefits
- Ensures compliance with international safety standards
- Durable, chemical-resistant construction for long-term use
- Integrated body and eye protection in one compact unit
- Easy installation and alignment with stainless steel fittings
Why Choose B-Safety GmbH ClassicLine Safety Shower Combination, Free-Standing, Floor-Mounted, With Eye Shower, 2330 mm, 1.5–3 bar?
This safety shower combination provides reliable, certified protection for emergency situations, combining robust construction, chemical resistance, and ergonomic design for quick and effective response.
