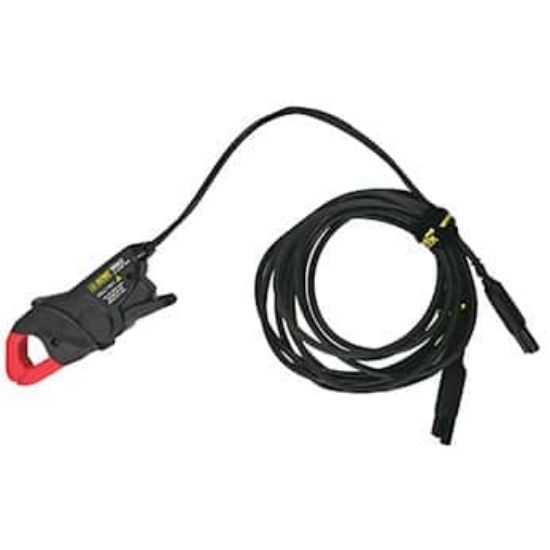

AEMC MN93-BK AC Current Probe, 240 AAC, 10 ft (20034-01 / AEMC 2140.32) is an AC current probe for compatible AEMC PowerPad and PEL instruments. It provides a 0.5 to 240 AAC measurement range, 10 ft (3 m) leads and a 0.78 in (20 mm) clamping diameter for electrical current measurement workflows.
Key Features:
- Model: MN93-BK
- AEMC Catalogue Number: 2140.32
- Current Range: 240 AAC
- Measurement Range: 0.5 to 240 AAC
- Clamping Diameter: 0.78 in (20 mm)
- Lead Length: 10 ft (3 m)
- Output Termination: Proprietary connector
- Typical Accuracy: ±1%
- Power Source: Not applicable
- Compatibility: AEMC PowerPads and PELs, with limited range for models 8220 and 8230
- Operating Conditions: -10 to +55 °C, 10 to 85% RH
- Storage Conditions: -40 to +70 °C, 10 to 90% RH
- Dimensions: 135 x 51 x 30 mm
- Weight: 690 g
- Protection: IK 04, IP40 jaws closed, IP30 jaws open
- Safety Compliance: IEC 61010-1, IEC 61010-2-032, 600 V CAT III, 300 V CAT IV
Benefits
- Supports current measurement across compatible AEMC power quality and energy logging instruments.
- Compact 20 mm clamp opening helps technicians work around conductors in electrical panels and test setups.
- Long 10 ft leads provide extra reach between the measurement point and connected analyser or logger.
- Proprietary connector supports direct use with supported AEMC instruments without a separate general-purpose termination.
- Environmental and safety ratings help confirm suitability for demanding electrical test environments.
Why Choose the AEMC MN93-BK AC Current Probe, 240 AAC, 10 ft (20034-01 / AEMC 2140.32)?
The AEMC MN93-BK AC Current Probe, 240 AAC, 10 ft (20034-01 / AEMC 2140.32) is a verified AEMC probe option for PowerPad and PEL users requiring a 0.5 to 240 AAC measurement range. John Morris Group supplies this electrical test accessory for Australian users who need compatible current measurement probes for AEMC power quality and energy logging workflows.
