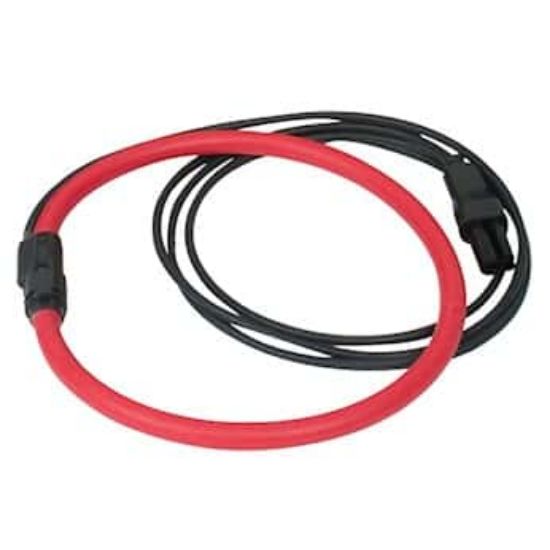

The AEMC AmpFlex Sensor, 24 in, 10 ft Lead (193-24-BK; Cat. #2140.34; JMG ref 20034-02) is a flexible AC current sensor for compatible AEMC PowerPad and PEL instruments. It provides a 24 in sensor length, 10 ft (3 m) lead, 7.64 in (190 mm) clamping diameter and manufacturer-listed measurement range up to 12,000 AAC depending on the connected instrument.
Key Features
- Brand: AEMC
- Model: 193-24-BK
- Manufacturer Cat. Number: 2140.34
- JMG Reference: 20034-02
- Product Type: flexible AC current sensor
- Sensor Length: 24 in (610 mm)
- Measurement Range: 100 mA to 12,000 AAC
- Current Range: 12,000 AAC
- Typical Accuracy: ±1%
- Lead Length: 10 ft (3 m)
- Clamping Diameter: 7.64 in (190 mm)
- Output Termination: proprietary connector
- Protection Rating: IK04, IP65
- Safety Compliance: IEC 61010-1, IEC 61010-2-032, 1000 V CAT III, 600 V CAT IV
Note: AEMC states that measured ranges can differ by connected instrument. The AEMC manual lists 10 to 6500 AAC for Model 8435, 100 mA to 6500 A for Model 8436, and 12,000 A for the PEL 100 Series.
Benefits
- Helps measure high AC current without rigid jaws, using a flexible sensor loop for large conductors.
- Supports field wiring convenience with a 10 ft shielded lead and proprietary AEMC connector.
- Provides suitability for compatible PowerPad and PEL workflows where flexible current sensing is required.
- Improves site practicality with IP65 protection and CAT III/CAT IV safety compliance.
- Helps confirm fit around large conductors with a published 190 mm clamping diameter.
Why Choose the AEMC AmpFlex Sensor, 24 in, 10 ft Lead (193-24-BK)?
The AEMC AmpFlex Sensor, 24 in, 10 ft Lead (193-24-BK; Cat. #2140.34) provides verified flexible current sensing for compatible AEMC power quality and energy logging instruments. John Morris Group supplies this AEMC sensor for industrial users needing a traceable current probe accessory with published measurement, mechanical and safety specifications.
