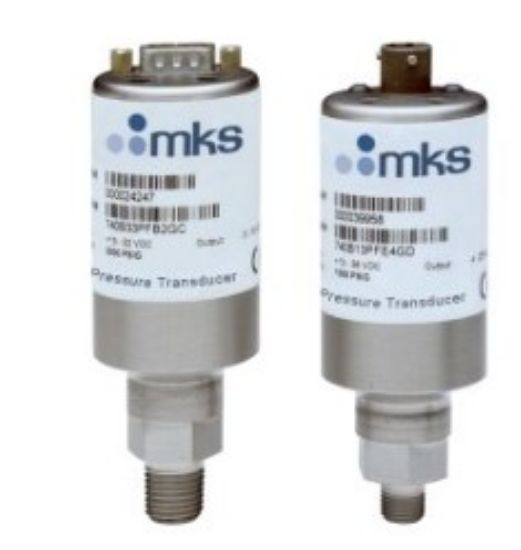

The MKS Absolute Pressure Transducer is a rugged, industrial-grade device designed for precise and reliable pressure measurement in demanding environments. It offers superior accuracy, repeatability, and long-term signal stability, with excellent corrosion resistance on exposed sensor surfaces.
Product Features
- Full scale pressure ranges from 20 to 3000 psia with ±1% of reading accuracy
- 0.125 inch NPT female fitting for secure and flexible installation
- 0-10 VDC output signal via 9-pin D-subminiature (DB9) electrical connector
- 4-20 mA and 0-5 VDC output options proportional to absolute pressure
- Overpressure limit of two times full scale or 45 psia with no performance degradation
- All-welded Inconel sensor construction designed for corrosive media
- Wide variety of fittings and electrical connectors for maximum flexibility
- Fully welded sensor design protects against accidental chemical exposure
Benefits
- Accurate and repeatable pressure measurements critical for industrial process control
- Durable corrosion-resistant construction extends sensor life in harsh environments
- Robust design minimizes maintenance and operational downtime
- Flexible installation options allow easy integration into new or existing systems
- Stable and reliable output reduces calibration frequency and improves measurement confidence
Why Choose the MKS Absolute Pressure Transducer 3000 psia, 0.125 in. NPT Female, 0-10 VDC, DB9?
Designed for durability and precision, the MKS Absolute Pressure Transducer delivers reliable, high-accuracy pressure measurements in challenging industrial settings. Its corrosion-resistant, fully welded sensor construction combined with flexible fittings and output options makes it ideal for both new installations and retrofits requiring dependable performance.
