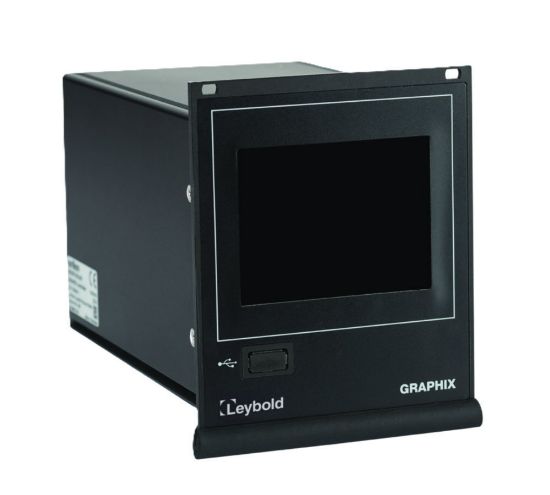

Vacuum control GRAPHIX
Universal controllers for connecting active vacuum sensors for direct pressure measurements.- 3.5" graphic touch display with intuitive menu navigation
- Graphical display of measurement data
- Display range 10-10 to 2000 mbar
- Various visualisation options (graphs and decimal display with zoom function)
- Display switchable between mbar, Torr, Micron, Pascal or Psi
- Internal and external storage (USB on the front) for measurement data and configuration files
- Leak rate indication via pressure rise method
- Zero alignment and degas function
- Up to six adjustable variable hysteresis switching thresholds
- RS 232 C/RS 485 C interface with adjustable baud rate
- 3 separate chart recorder outputs 0 to 10 volts for each measuring channel (analogue output)
- Relay output for error detection
- Selectable languages: English, German, Chinese, Japanese, French, Italian, Korean
- Visualisation via LEYASSIST software on the PC
- Software update possible via USB
