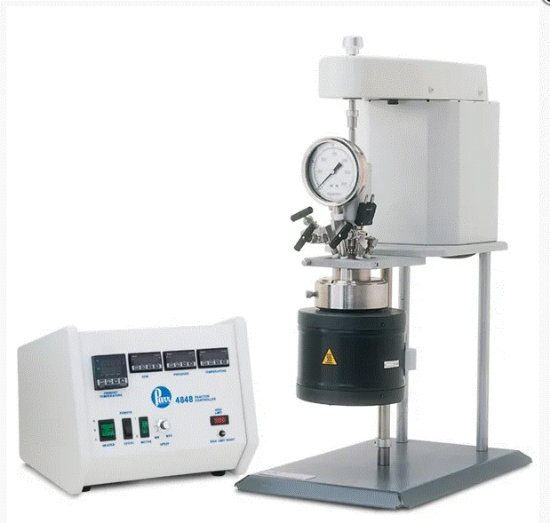

A) 600mL Fixed head reactor bench top style.
B) Vessel MAWP Rating: 3000 PSI at 350°C.
C) Head, cylinder, magnetic drive, and internal wetted parts (in direct contact with
process liquid) constructed of Titanium Gr2
D) Vapor-containing external valves and fittings constructed of stainless steel.
E) PTFE Flat Gasket stable up to 350C
F) Head to include:
a. Magnetic Drive, 16 in-lb. with stirrer shaft
b. Pressure gauge 0-3000 psi
c. Gas release valve
d. Double valve assembly with inlet valve and sampling valve over dip tube.
e. Safety rupture disc
f. Thermocouple, Type J and cooling loop
H) Bench top stand with mantle heater, 230V
I) Variable speed motor, 1/8hp
J) 4848 Reactor Controller with the following specifications:
a. PID temperature control with ramp and soak programming
b. Manual speed adjustment knob, 0-600 rpm
c. 230V Electrical
K) ASME Certification
Optional control modules available upon request.
