4562-450ml, 4562-T-INC600-M-(INC600)-230-VS.12-3000-4848-ASME

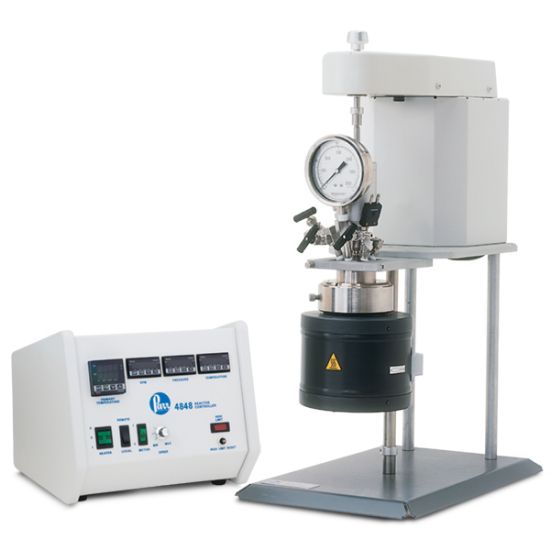

4560 series stirred mini reactor with the following specifications
A) Vessel made of Inconel 600 with moveable head configuration
B) Total volume of the vessel 450 ml
C) Standard rating pressure 3000 psi @ 350C
D) PTFE flat gasket stable up to 350 C
E) Head fittings include :
1. Gas inlet valve
2. Gas release valve
3. Liquid sampling valve
4. Dip tube
5. Thermocouple with thermowell
6. Pressure gage range 0 - 3000
7. Single loop cooling coil included
F) Split ring closure ( 6 compressoin bolts for flat gasket)
G) Bench top stand
H) Valve connections 1/8" NPT Male
I) General purpose Magnetic stirrer drive 16 lin-lb and made of Stainless steel
J) Variable speed motor VS.12 1/8 hp
K) Electical supply 230 V
L) 4848 PID Temperature controller with ramp and soak programming
M) ASME certification
