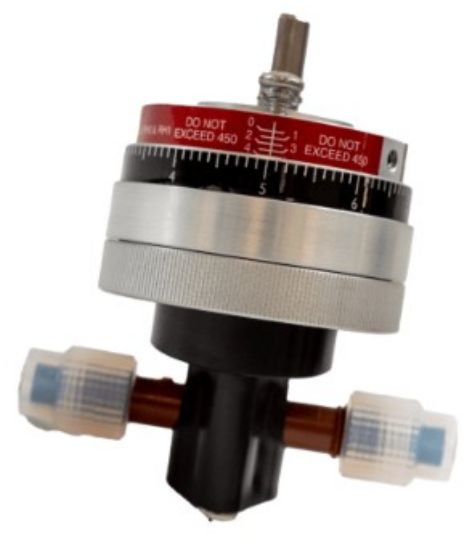

The Fluid Metering RH Pump Head, ETFE/Zirconia, 0 to 25 µL (RH00ZTC) is an RH series miniature motorless pump head for precise valveless piston fluid metering. This configured RH00ZTC version uses zirconia, ceramic and ETFE/Tefzel wetted materials, with a 0 to 25 µL volume per rotation reference. The RH platform is designed for laboratory, analytical, industrial and OEM fluid handling applications where repeatable small-volume pumping is required.
Key Features
- Brand: Fluid Metering
- Model / Part Number: RH00ZTC
- Product Type: RH miniature motorless pump head
- Series: RH
- Configured Variant: ETFE/Tefzel, zirconia and ceramic fluid path
- Volume Per Rotation: 0 to 25 µL
- Piston Size: 1/8 inch diameter
- Piston Material: Zirconia
- Cylinder Liner Material: Ceramic
- Cylinder Case Material: ETFE/Tefzel
- Dispense Volume Resolution: 0.003 to 0.025 mL/rev, dependent on pump head and motor setup
- Flow Rate Range: 0.003 to 65.0 mL/min, dependent on pump head and motor setup
- Operating Pressure Range: 0 to 60 psig (0 to 4.1 bar)
- Operating Temperature Range: 0 to 100°C for ETFE cylinder casing options
- Operating Motor Speed: 0 to 2600 rpm
- Dimensions: 57 mm OD x 89 mm
- Weight: 0.9 kg
- Shaft Extension: 8 mm diameter x 19 mm long
- Tubing Connection: Accepts standard 1/4 inch outside diameter tubing or tubing adapters
- Stroke Adjustment: 0 to 100% stroke length adjustment
- Pump Design: Valveless pump head with a single moving part
- Drive Compatibility: Compatible with Fluid Metering RH pump drive modules
- Regulatory Compliance: RoHS compliant and REACH compliant
Note: Flow rate, dispense volume and pressure depend on the selected pump drive module, motor setup and application conditions.
Benefits
- Supports accurate small-volume fluid metering for laboratory, analytical and OEM workflows.
- Provides an ETFE, zirconia and ceramic fluid path for applications requiring corrosion-resistant wetted materials.
- Helps reduce maintenance concerns through a valveless design with one moving part.
- Allows the pump head to be paired with compatible Fluid Metering RH drive modules.
- Supports flexible flow adjustment through mechanical stroke-length control.
- Provides a compact RH pump head format for integration into instruments, systems and benchtop setups.
Why Choose the Fluid Metering RH Pump Head, ETFE/Zirconia, 0 to 25 µL (RH00ZTC)?
The Fluid Metering RH Pump Head, ETFE/Zirconia, 0 to 25 µL (RH00ZTC) combines RH series miniature pump head design with zirconia, ceramic and ETFE/Tefzel wetted materials for precise low-volume fluid handling. Source it through John Morris Group for local support with pump head selection, configuration checks and compatible Fluid Metering drive matching.
