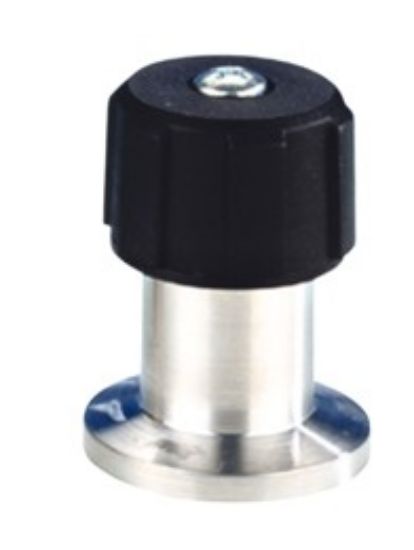

The Edwards Vacuum AV10K NW10 Air Admittance Valve (C35103000) is a manually actuated valve for admitting air into a vacuum system through a DN 10 ISO-KF connection. Its compact aluminium construction incorporates a screw-actuated plunger and nitrile O-ring seal for pipeline-supported installation.
Key Features
- Manual screw-actuated operation, using a control knob attached to the valve plunger
- Clearly defined closing action, with clockwise control-knob rotation used to close the valve
- Standard NW10 vacuum connection, specified as a DN 10 ISO-KF inlet flange
- Pipeline-supported installation, designed to be supported directly by the connected vacuum pipeline
- Compact aluminium construction, with an HE30 aluminium valve body
- Nitrile plunger sealing, using an NBR O-ring between the plunger and valve body
- Low seat leak rate, specified at 1 × 10⁻⁸ Pa·m³/s
- Compact and lightweight format, measuring 27 × 27 × 42 mm and weighing 0.100 kg
Benefits
- Provide straightforward manual air admission using a simple control-knob mechanism.
- Connect directly to compatible DN 10 ISO-KF vacuum-system hardware.
- Minimise the load placed on the vacuum pipeline through the compact 100 g construction.
- Support reliable shut-off using a screw-actuated plunger and nitrile sealing arrangement.
- Integrate the valve into space-restricted vacuum assemblies with its compact overall dimensions.
Why Choose the Edwards Vacuum AV10K NW10 Air Admittance Valve (C35103000)?
The Edwards Vacuum AV10K NW10 Air Admittance Valve (C35103000) provides compact manual air admission for vacuum systems using a standard ISO-KF connection. John Morris Group can assist with valve selection and compatible NW10 vacuum fittings for laboratory and industrial vacuum installations.
