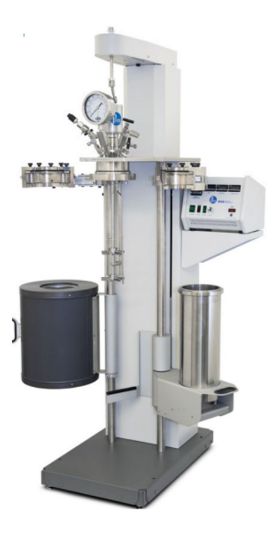

4550 Series High Pressure Reactor with the following configuration
4554-2GAL, 4554-T-SS-XHD-(SS)-230-VS.50-2000-4848B-ASME-Standpipe
A) Fixed head, stationary floor stand pressure vessel
B) Total volume 2 Gallon [ 1G = 3.75lt]
C) MAWP 131 bar or 1900 psi
D) PTFE gasket stable up to 350C
E) Split Ring closure
F) Head, cylidner and all the wetted parts made of stainless steel
F) Extra Heavy Duty magentic stirrer 120 in-lb
G) Magnetic drive made up of stainless steel
H) 230V power supply
I) Variable speed motor 1/2 hp
J) Pressure gage 0-2000 psi
K) Expanded 4848B PID temperature control, Ramp and Soak programming, 4848B can accomodate upto 6 additional control modules.
L) ASME Certification
M) Removeable Standpipes
Extra control [PDM, MTM, MCM etc] modules must be ordered separately. Not included in the price of the reactor.
