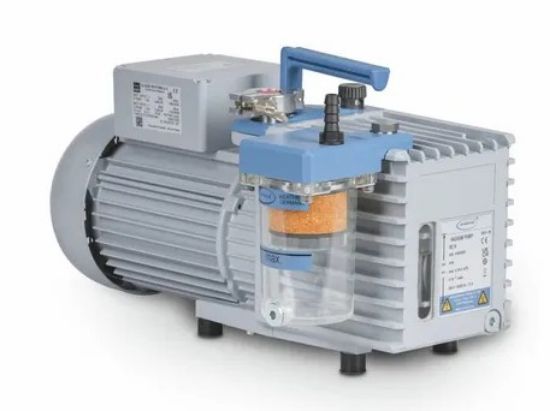

These powerful rotary vane pumps feature a particularly compact design and low weight for pumps of this capacity. They are the ideal solution for a wide range of laboratory and process applications that require low ultimate vacuum at medium to increased gas flow rate. The FO oil mist filter separates nearly 100% of oil mist at the ultimate vacuum of the pump.
Exhaust gases from oil-sealed rotary vane pumps always carry a certain quantity of oil mist. This is extremely unpleasant, and even harmful, for those working nearby. Rotary vane pumps are used when an ultimate vacuum between a few mbar and down to 10-3 mbar has to be attained. Typical applications are degassing, lyophilization, fine vacuum distillation and drying chambers.
Max. pumping speed 50 Hz: 5.7 m3/h
Max. pumping speed 60 Hz: 4.0 cfm
Ultimate partial vacuum (abs.) without gas ballast: 4 x 10-4 mbar
Ultimate vacuum: 2 x 10-3 mbar / 1.5 x 10-3 torr
Ultimate vacuum with gas ballast: 1 x 10-2 mbar / 0.75 x 10-2 torr
