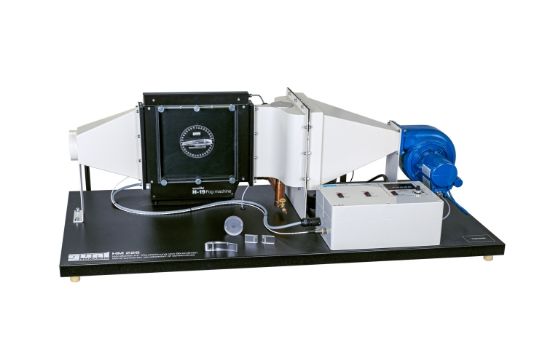

The GUNT Wind Tunnel for Visualisation of Streamlines enables clear observation of flow fields in steady air flow using fog, smoke, or tufts, helping identify flow phenomena such as stall, separation, and turbulence.
Product Features
- Open wind tunnel designed for visualising streamlines, flow separation, and turbulence
- Fog generated by evaporating a non-toxic, water-soluble glycol mixture in the fog generator
- Fog precipitates are easily wiped off and do not damage common materials
- Air flow produced by a fan passing through a stabilisation chamber with flow straightener for low turbulence
- Fog intermittently injected through multiple nozzles into the airflow
- Experimental section with black background, sight window, and additional lighting for clear visibility of streamlines
- Includes four interchangeable models: cylinder, orifice plate, aerofoil, and guide vane profile
- Aerofoil model features adjustable angle of attack
Benefits
- Provides intuitive visualisation of complex flow phenomena in real time
- Non-toxic fog ensures safe and clean operation
- Adjustable models allow versatile experimental setups and detailed study of flow effects
- Low-turbulence airflow ensures accurate and repeatable visualisation
- Enhanced observation with lighting and viewing window improves experiment clarity
Why Choose the GUNT Wind Tunnel for Visualisation of Streamlines?
The GUNT Wind Tunnel for Visualisation of Streamlines is a powerful teaching and research tool, delivering real-time insight into aerodynamic flow behaviors through safe and effective fog-based visualization techniques. It supports a wide range of experiments with interchangeable models for comprehensive flow study.
