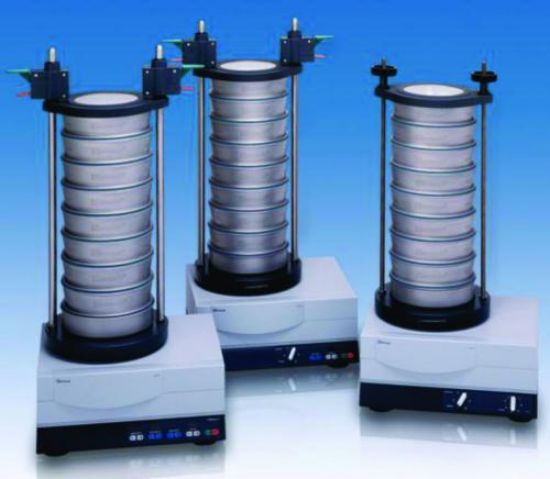

Sieve shaker AS 200 tap 230 V / 50 Hz
AS 400 control:
The AS 400 control is used for the sieving of dry goods with test sieves of a diameter up to 400mm. The uniform, horizontal circular motion ensures exact separation of the product to be sieved.
-Sieving with circular sieving motion according to DIN 53477
-Free digital adjustment of all process parameters (time, speed, interval)
-Memory for up to 9 SOPs
-Integrated interface for evaluation software EasySieve®
-Electrical supply data: 100-240 V, 50/60 Hz
Please order clamping device, test sieves and collecting pan separately. The clamping devices of AS 200 and AS 300 are also suitable for the AS 400.
AS 200 tap:
For sieve analysis of certain products such as activated carbon, abrasives, coal, spices and diamonds, as specified in the corresponding standards.
-Horizontal, circular sieving motion with vertical taps
-Suitable for dry sieving
-Robust and maintenance-free
-Electrical supply data: 230 V, 50 Hz
Please order test sieves and collecting pan separately.
AS 200 jet:
The air jet sieving machine AS 200 jet is particularly suitable for light materials with particle sizes in the lower micron range which tend to agglomerate.
-Open Mesh Function to reduce the number of near-mesh particles
-Operation with standard Retsch sieves, 203 mm (8") diameter, 1" or 2" high
-Adapter for 200mm sieves optional
-Free manual (standard) or automatic (accessory) pressure regulation
-High flexibility through adjustable nozzle speed
-Memory for up to 9 SOPs, additional Quick Start mode
-Electrical supply data: 230 V, 50/60 Hz
Please order test sieve and vacuum cleaner separately.
Specifications
Max. number of fractions (depending on sieve size):
AS 400 control:
AS 200 tap:
AS 200 jet: 7 / 9 / 17
7 / 13
1 (2 with cyclone)
Movement of sample:
AS 400 control:
AS 200 tap:
AS 200 jet: circular
circular with taps
dispersion by air jet
Height of sievetower
AS 400 control:
AS 200 tap:
AS 200 jet: up to approx. 450mm
up to approx. 350mm
up to approx. 50mm
Max. charge/quantity of sample:
AS 400 control:
AS 200 tap:
AS 200 jet: 5kg
3kg
0.3 to 100g
Timer: digital
