Methods : ASTM D2112, ASTM D2272, ASTM D4742, IP 229

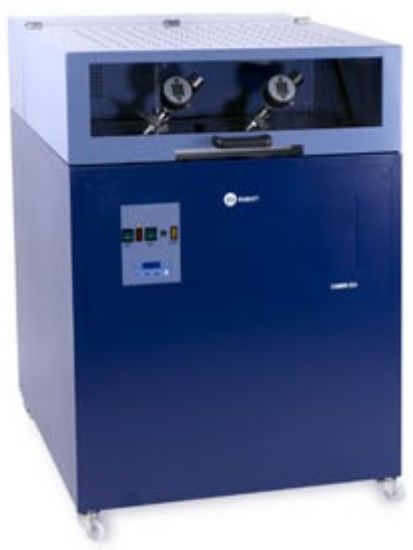

Seta RoBot Bath is a floor standing unit, used for the evaluation of oxidation stability of new and in-service engine, turbine and insulating oils in the presence of water and a copper catalyst.
72 litre oil bath is digitally temperature controlled. A hinged hood, fitted with a safety interlock that switches off the motor when opened to protect the operator from the rotating test vessels.
Bath is equipped with low fluid level and over-temperature protection devices. Extraction fans remove silicone oil vapours and fumes from the bath.
- Ambient to 160 °C
- Two test stations
- Fume extraction
- Gear drive
- Optional pressure monitoring
Specification
- Temperature range : Ambient to 160 °C
- Temperature stability : ±0.1 °C
- Bath capacity : 72 litres
- Bath fluid : Silicone Oil
- Number of vessels : 2
- Rotational speed : 100 rev/min
- Voltage : 220/240 V, 50 Hz
- Power : 3.2 kW
- Size (HxWxD) : 113x78x88 cm
- Weight : 87 kg
