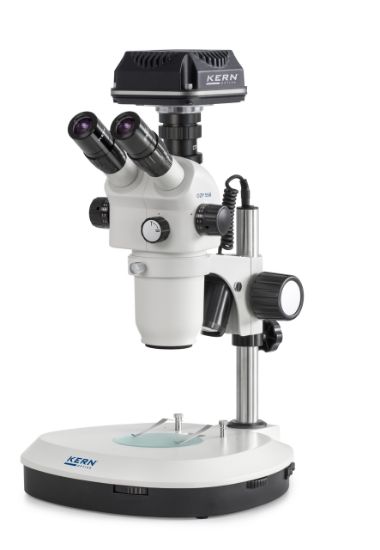

Digital microscope set OZP-S ODC 825 USB 2.0
_1537335
Representative image only

Digital microscope set OZP-S ODC 825 USB 2.0

$6,638.95

The price is inclusive of GST
  • The professional OZP range is now also available to you as a comprehensive digital solution for your live investigations. Optionally available with an adapted tablet or C-mount camera. Naturally, the appropriate C-mount adapter is included with the delivery
  • The KERN OZP stereo zoom microscope stands out through its above-average magnification range and its robust shape which is also ergonomic, it enables effortless, simple working over a period of several hours
  • The extraordinarily strong and continuously dimmable 3W LED incident and transmitted illumination ensures a flexible and particularly good level of illumination for your sample
  • With its large working distance, an extra large field of view and its brilliant resolution, the KERN OZP-S provides sharp, high-contrast, colour-true images.
  • The adapted C-mount camera is available in different versions and can be used anywhere
  • For detailed information on the individual components, see the relevant product description of the individual item
  • A large selection of eyepieces, external illumination units as well as auxiliary objectives are available as accessories
  • A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of the delivery


Technical data Microscope OZP-S

  • Optical system: Greenough optics
  • Brightness adjustable (separate)
  • Lens barrel 35° tilt
  • Magnification ratio: 9,2:1
  • Light distribution 50:50
  • Eye distance: 52.0 - 76.0 mm
  • Dioptre compensation (both sides)
  • Overall dimensions W×D×H 330×285×470 mm
  • Net weight approx. 4,6816 kg
  • Okulare: HWF 10×20 mm
  • Visual field (mm): 38.3 - 4.2
  • Objektive: 0,6 x - 5,5 x
  • Stand: Pillar
  • Illumination: 3W LED (transmitted), 3W LED (incident)
