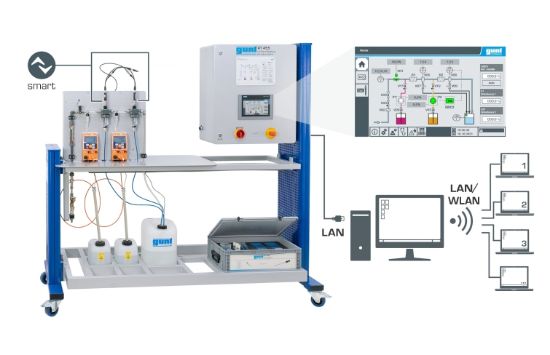

The GUNT pH Value Control Trainer offers a practical, real-world training experience in chemical process control using advanced industrial components. The system uses water as a carrier medium flowing through a pipe section and integrates two smart pH sensors—one upstream and one downstream—to monitor and control the pH value. An acid dosing pump serves as the actuator, while disturbance variables can be introduced via a metering pump for alkaline solution and a solenoid valve for flow variation. Thorough mixing is ensured with static mixers. The setup allows complete neutralisation before collecting the treated solution in a product tank. Smart sensors connected via Modbus enable calibration and parameter transmission directly through the PLC. The trainer includes integrated PLC control with a touchscreen and offers remote operation and analysis via GUNT software over LAN/WLAN.
Product Features
- Built entirely from industrial-grade components for authentic process control training
- Uses flowing water in a pipe section as the controlled system
- Smart pH sensor at the outlet measures controlled variable precisely
- Second smart pH sensor upstream for real-time disturbance measurement
- Acid dosing pump downstream serves as actuator for neutralisation
- Alkaline solution added upstream via metering pump to simulate disturbances
- Solenoid valve in inlet varies mass flow rate for additional system complexity
- Static mixers ensure homogeneous mixing of fluids
- Collected solution stored in a product tank with manual pH checking capability
- Smart sensors communicate via Modbus for parameter exchange and in-system calibration
- Controlled and monitored through integrated PLC with touchscreen
- Supports external PC control and analysis via GUNT software
- Network-ready software allows multi-user access via LAN or WLAN
- Control response visualised in time-function plots for dynamic system behaviour
Benefits
- Hands-on experience with pH value regulation in process engineering
- Smart sensors prepare users for Industry 4.0 applications and diagnostics
- Integrated disturbances simulate real-world fluctuations for training robustness
- Complete system for teaching open and closed loop control principles
- Remote accessibility and multi-station monitoring for classroom or lab environments
Why Choose the GUNT pH Value Control Trainer?
With Modbus-connected smart pH sensors, PLC control, and a real fluid system, the GUNT pH Value Control Trainer enables students and professionals to explore precise chemical control processes in an educational environment. Its modular design, thorough mixing components, and disturbance simulation make it an ideal platform for mastering automated pH regulation in both academic and industrial training contexts.
