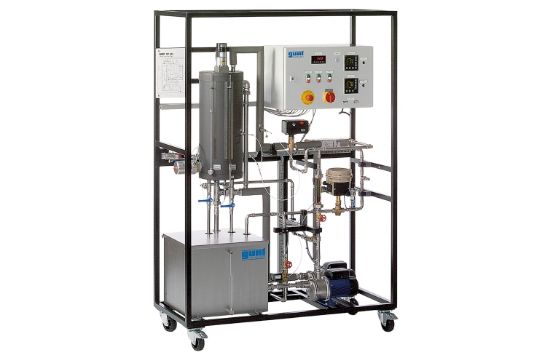

Representative image only

GUNT Multivariable Control System for Stirred Tank with Digital Controllers, Heat Exchanger, Three-Way Valve, and PROFIBUS Interface

The GUNT Multivariable Control System for Stirred Tank offers hands-on training in advanced process control by simulating a typical chemical engineering application. It demonstrates the complexity of multivariable systems through the interdependence of temperature and level within a heated stirred tank reactor.

Product Features

  • Designed for practical learning of complex multivariable control systems in process engineering.
  • Model simulates a chemical reaction in a heated stirred tank using water as both reactant and product.
  • Reactant is transported from a collecting tank via pump and pre-heated in a heat exchanger before entering the stirred tank.
  • Heater in the double jacket enables temperature control within the stirred tank.
  • Heated product exits the tank and passes through the heat exchanger to transfer heat back to the incoming reactant, enhancing energy efficiency.
  • A bypass allows part of the reactant flow to avoid the heat exchanger, enabling dual-path thermal control.
  • Three-way motorised valve adjusts the ratio between pre-heated and bypassed flows to regulate tank temperature.
  • Outlet flow is adjusted using a control valve, which changes the tank level—introducing a second control variable.
  • Temperature and level are interdependent variables, forming a true multivariable control scenario.
  • Two industrial-grade digital controllers provided for temperature and level control.
  • Controllers can be configured and parameterised via included software.
  • Equipped with PROFIBUS DP interface for monitoring and communication with optional software RT 650.60.
  • RT 650.60 software enables real-time variable logging and full controller parameterisation from a PC.
  • Multiple GUNT trainers can be networked through PROFIBUS for integrated training systems.

Benefits

  • Hands-on exploration of multivariable process dynamics in a chemical reactor simulation
  • Dual temperature control via heater and flow ratio adjustment enhances process understanding
  • Digital industrial controllers and PROFIBUS integration for realistic training
  • Modular and expandable with other GUNT control systems via networked interface
  • Ideal for engineering programs focused on advanced control and process optimization

Why Choose the GUNT Multivariable Control System for Stirred Tank?

This trainer is the ideal platform for understanding the interdependencies between process variables like temperature and level. With real-world control strategies, energy recovery concepts, and full software integration, it delivers advanced, practical education for future process engineers.
