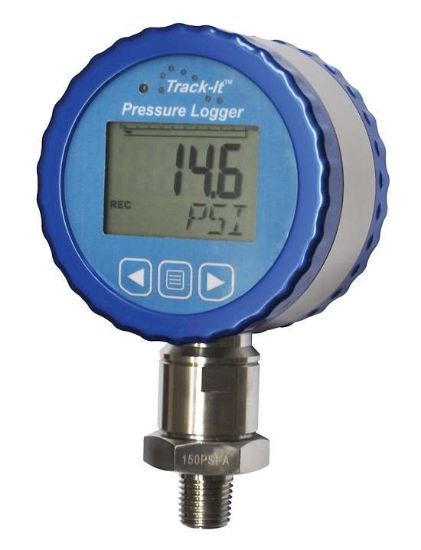

The Monarch 5396-0375 Track-It Sealed Pressure/Temp Logger provides a versatile solution for monitoring high-pressure and temperature conditions in industrial, laboratory, and process environments. Combining a gauge, data logger, and transmitter in a single sealed device, this logger ensures durability, accuracy, and ease of use.
Product Features
- Three instruments in one—gauge, data logger, and transmitter
- Multiline large-digit LCD scrolls through current readings, date/time, memory used, and Max/Min values with a single button
- Records up to 130,000 pressure/vacuum and temperature data points
- Download saved data or live stream to PC for real-time monitoring
- Rugged IP67-rated housing is watertight and submersible
- Three-year battery for long-term recording
- Available pressure units: psi, in. Hg, mm Hg, kPa, mPa, Pa, mbar, bar, in. H2O, atm, Torr
- Overpressure rating: 150% full-scale
- Durable anodized aluminum and 316L stainless steel construction for harsh environments
- 1/4" NPT(M) process connection for easy installation
- Configuration software lets you program units, alarms, start/stop times, and sampling rate
- Nonvolatile memory stores up to 130,000 data points; real-time streaming capability available
What’s Included
- Track-It software
- USB cable
- Li-ion 1/2AA battery
Benefits
- Replaces traditional pressure gauges with a multifunctional, sealed device
- Easy-to-read display and flexible software control simplify monitoring
- Waterproof, rugged housing protects against harsh conditions
- Supports long-term data logging with minimal maintenance
- Versatile installation and compatibility with a wide range of industrial applications
Why Choose Monarch 5396-0375 Track-It Sealed Pressure/Temp Logger?
This high-pressure and temperature data logger provides a comprehensive solution for industrial, laboratory, and process monitoring, combining robust hardware, versatile software, and long-term reliability in a sealed, durable design.
