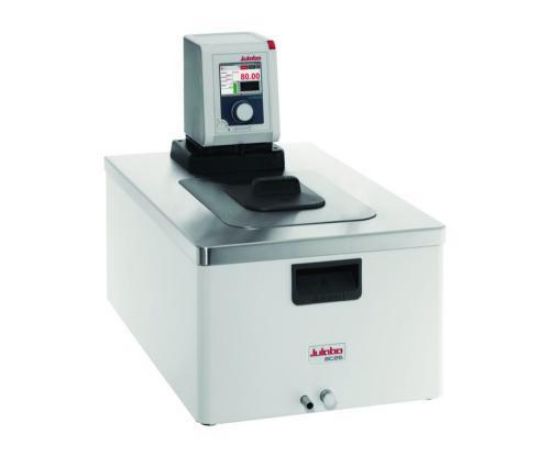

Julabo Heating Circulator DYNEO DD-BC26 with RS232 interface option is designed for internal and external applications, offering powerful components and a large, easy-to-read colored TFT display. Operation is simple and intuitive via the central controller on the front of the device, with USB interface and optional analogue or RS232 interface.
Product Features
- Easy switching between internal and external circulation
- Integrated cooling coil for counter-cooling
- Built-in drain tap
- Integrated programmer for 8 x 60 program steps
- Class III (FL) acc. to DIN 12876-1
- Continuously adjustable, powerful pressure pump
- Pump connections M16x1 (outer thread)
- External Pt100 sensor connection
- Includes 2 hose connectors for 8 and 12 mm I.W. and bath lid
Specifications
- Operating temperature range: 20...200 °C
- Temperature stability: 0.01 °C
- Heating capacity: 2 kW
- Flow rate: 8 ... 27 l/min
- Pump capacity: 0.1 ... 0.7 bar
- Power supply: 200-230 V, 50/60 Hz
Benefits
- Reliable and precise temperature control for internal and external applications
- Integrated programmer and RS232 interface for advanced process control
- Compact and efficient design with built-in drain and cooling coil
- Robust pump and connections for long-lasting performance
Why Choose Julabo DYNEO DD-BC26?
The Julabo Heating Circulator DYNEO DD-BC26 combines accuracy, reliability, and ease of use for laboratory and industrial applications. Its versatile features, including RS232 connectivity and programmable controls, make it an ideal choice for precise heating and circulation tasks.
