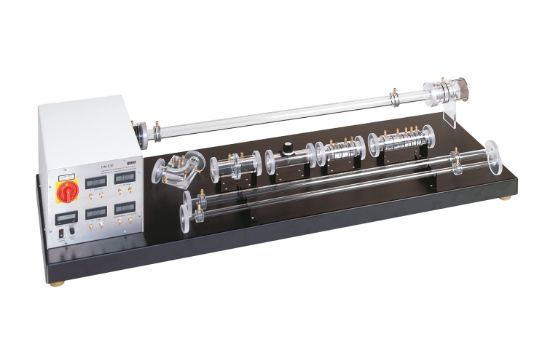

The GUNT Flow of Compressible Fluids Trainer enables the investigation of air flow across various velocity ranges, highlighting compressible flow effects essential for designing turbo compressors, jets, and fast aircraft.
Product Features
- Studies air flow in compressible fluid regimes where density changes significantly with pressure
- Radial fan with infinitely variable speed control draws in air from the environment
- Air flow accelerated at intake via a measuring nozzle for accurate velocity control
- Interchangeable transparent measuring objects arranged on the intake side of the fan to minimize turbulence
- Pressure loss investigations in pipe elbow, various pipe sections, and nozzle with sudden enlargement
- De Laval nozzle with gradual enlargement provides introduction to sonic flow phenomena
- Volumetric flow rate measured via orifice with differential pressure manometer and four interchangeable orifice disks for varying measurement ranges
- Fan characteristic curve can be recorded using a throttle valve
- Measured volumetric flow rate, pressure, and speed values displayed digitally for easy analysis
Benefits
- Enables detailed understanding of compressible flow behaviors and density changes
- Accurate digital measurement display simplifies data acquisition and interpretation
- Transparent measuring objects provide excellent insight into flow mechanics
- Flexible setup with interchangeable components allows varied experimental configurations
- Essential tool for training in aerospace, mechanical, and fluid engineering fields
Why Choose the GUNT Flow of Compressible Fluids Trainer?
The GUNT Flow of Compressible Fluids Trainer is a versatile and comprehensive experimental unit designed for educational and research purposes to study flow dynamics in compressible fluids, providing key insights into velocity, pressure losses, and sonic flow phenomena.
