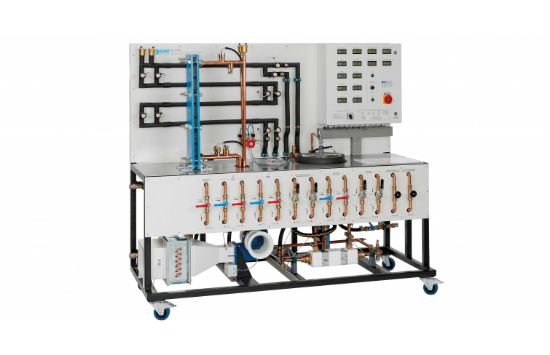

GUNT In practice, different types of heat exchangers are used depending on requirements to ensure efficient heat transfer and minimize losses. The GUNT trainer is designed to study and compare five different heat exchangers, demonstrating both parallel flow and counterflow operations with their distinct temperature curves.
Product Features
- Compares five heat exchanger types: plate, tubular, shell & tube, finned tube, and stirred tank with double jacket and coiled tube
- Demonstrates parallel flow and counterflow heat transfer with valve switching
- Heat transfer between hot and cold water in tubes or plates in plate, tubular, and shell & tube exchangers
- Air flows around pipes with hot water in crossflow for finned tube exchanger
- Stirred tank includes a mixing machine to ensure even heat distribution in the water
- Air volume flow for finned tube exchanger adjusted via throttle valve at fan outlet
- Flow rates in hot and cold water circuits adjustable via valves
- Air volume flow measured by fixed differential pressure sensor
- Water pressure measurable at various points using a portable differential pressure sensor
- Temperatures and flow rates displayed digitally and transmitted via USB for PC analysis with included software
- Hot and cold water supplied from laboratory network or optional hot water generator and water chiller accessories
Benefits
- Enables comprehensive comparison of different heat exchanger types under controlled conditions
- Visualizes differences between parallel flow and counterflow heat exchange operations
- Precise adjustment and measurement of air and water flows improve experimental accuracy
- Digital data acquisition and USB output facilitate detailed analysis and documentation
- Robust construction and integrated mixing system ensure uniform heat distribution and reliable results
- Modular accessory options expand system flexibility for varied lab requirements
Why Choose the GUNT Heat Exchanger Comparison Trainer?
The GUNT heat exchanger comparison trainer is an ideal educational tool for laboratories and training centers seeking to understand and analyze different heat exchanger designs and flow configurations. It offers hands-on experience with multiple exchanger types, flexible flow control, and precise digital measurement, making it a versatile and reliable system for both teaching and research. The included software simplifies data management, ensuring an effective learning process for students and professionals alike.
