The GUNT cavitation occurs when vapour bubbles form in flowing fluids due to low pressure, especially in areas like the narrowest section of a Venturi nozzle where pressure drops and bubbles subsequently implode as pressure rises again.
Product Features

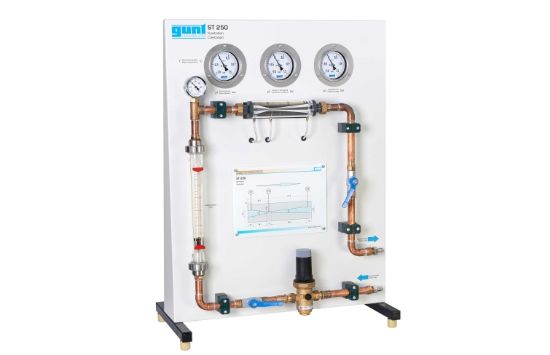

- Transparent Venturi nozzle for clear visualisation of flow and cavitation
- Three pressure measuring points: inlet, throat, and outlet of the nozzle
- Adjustable input pressure via a pressure reducing valve
- Flow rate and pressures controlled with two ball valves on inlet and outlet
- Pressure distribution displayed on three integrated manometers
- Flow rate indicated by rotameter for accurate measurement
- Temperature measurement upstream of the Venturi nozzle with thermometer display
Benefits
- Clear visualisation of cavitation phenomena for educational and experimental purposes
- Precise control of flow and pressure parameters for detailed study
- Robust construction with transparent parts to observe internal fluid behavior
- Comprehensive instrumentation for simultaneous pressure, flow, and temperature monitoring
Why Choose the GUNT Cavitation Demonstration Unit?
This unit is designed for educators and researchers requiring a practical demonstration of cavitation in fluid dynamics. Its transparent Venturi nozzle and comprehensive measurement tools enable detailed analysis of pressure and flow relationships during cavitation, making it ideal for laboratory training and experimental investigations.
