Model:059 - 4-conductor, shielded, polyurethane jacket cable (price per feet)_1091979

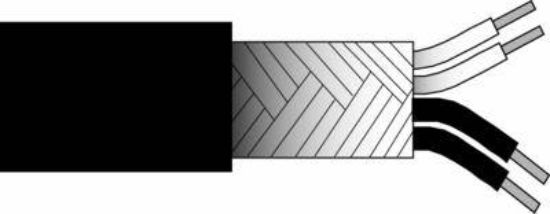

Representative image only

Model:059 - 4-conductor, shielded, polyurethane jacket cable (price per feet)

$11.50

The price is inclusive of GST
Cable
4-conductor, shielded, polyurethane jacket cable (price per feet)


Product Specifications
 ENGLISHSI
Performance
    Number of Conductors44
    Cable StyleMulti Conductor - ShieldedMulti Conductor - Shielded
    Cable ConfigurationTwisted BundleTwisted Bundle
Environmental
    Temperature Range-58 to +250 °F-50 to +121 °C
Electrical
    Capacitance (conductor to conductor @ 70 °F (21 °C))36 pF/ft118 pF/m
Physical
    Cable Jacket Diameter (±.010 in)0.25 in6.35 mm[1]
    Cable Jacket MaterialPolyurethanePolyurethane
    Cable Jacket ColorBlackBlack
    Conductor StyleStranded - 19 strands 32 AWGStranded - 19 strands 32 AWG
    Conductor MaterialTin Plated CopperTin Plated Copper
    Conductor Diameter (20 AWG)0.040 in1.016 mm[1]
    Shield Type Over BundleBraid: 90% Minimum CoverageBraid: 90% Minimum Coverage
    Shield Material Over BundleTin Plated CopperTin Plated Copper
    Shield Wire Diameter Over Bundle (Each Strand 36 AWG)0.185 in4.699 mm[1]
    Bend Radius (minimum)2.5 in63.5 mm
    Weight0.75 oz/ft69.59 gm/m[1]

All specifications are at room temperature unless otherwise specified.
Product Notes
[1] Typical.
Accessories:
No Accessories
Optional Versions:
No optional versions
